5-Axis CNC Machining in China for Complex Geometry in Fewer Setups

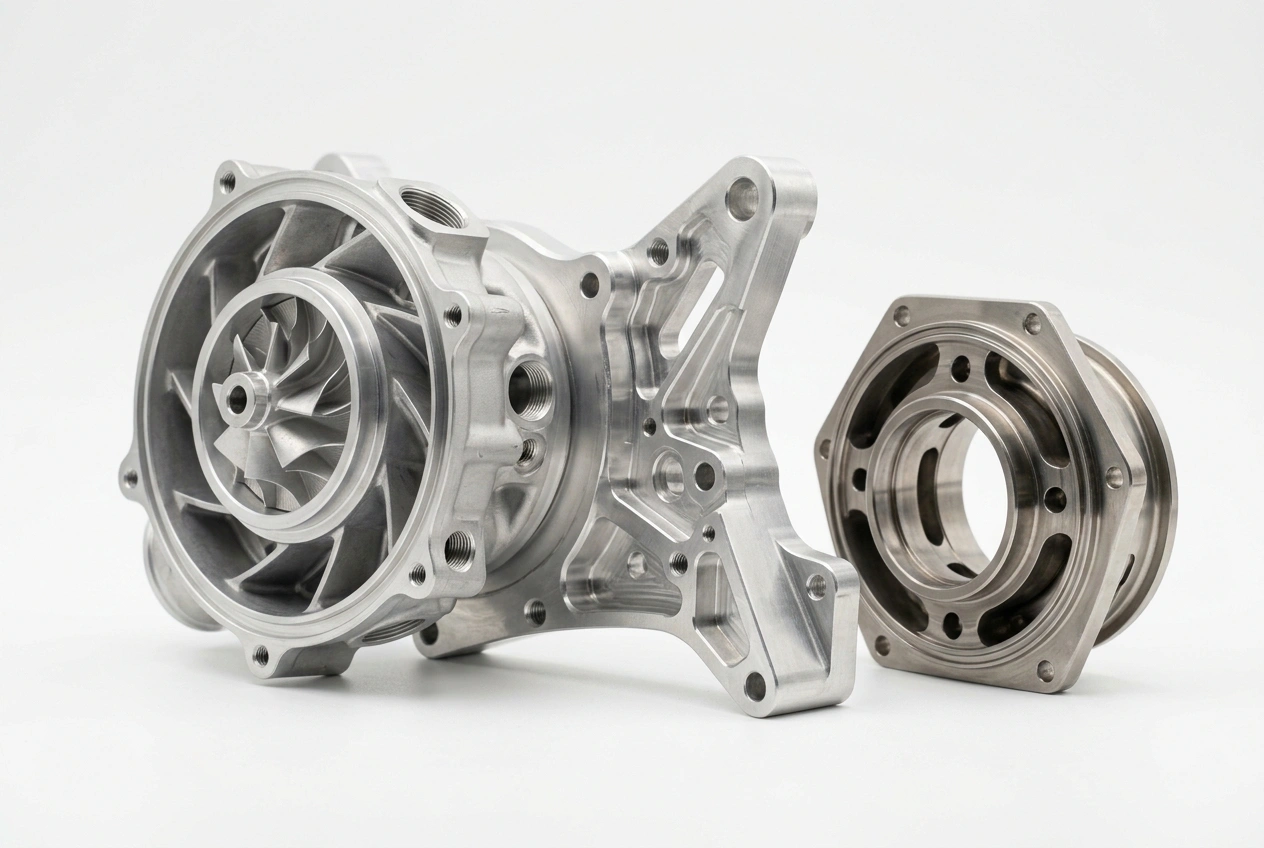

Five-axis CNC machining uses a milling process where the cutter can be positioned and driven along three linear axes—typically called X, Y, and Z—plus two additional rotary degrees of freedom. On most equipment those rotary axes tilt and/or rotate the tool or the workholding (often labeled A, B, or C depending on the machine). That extra reach lets the tool stay oriented to curved walls, deep pockets, and undercuts with fewer manual setups than conventional 3-axis milling.

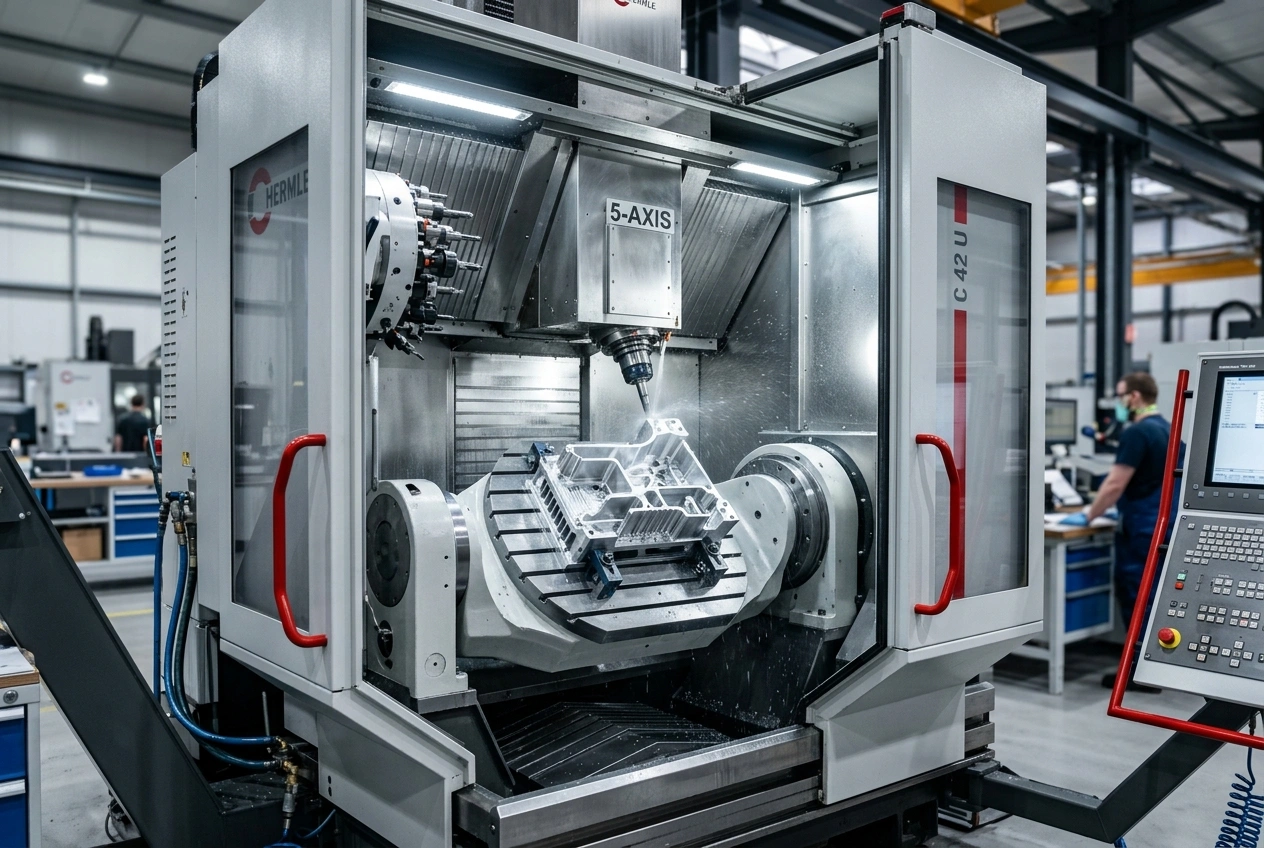

The first three axes are linear: movement along X, Y, and Z. The fourth and fifth axes are rotary: they rotate the part and/or tilt the spindle or table so the tool can approach the work from angles that a fixed 3-axis setup cannot reach in one clamping. Exact axis naming (A/B/C) varies by builder, but the goal is the same—control tool orientation relative to the surface being cut.

Simultaneous (or “full”) 5-axis means the machine can move all five axes in coordinated motion during a cut—useful for smooth finishing of complex surfaces. “3+2” or positional 5-axis means the rotary axes move between cuts to lock the part at a fixed angle, then machining runs as three-axis toolpaths in that orientation. Both reduce setups; simultaneous motion is often chosen for blended surfaces and tight blend quality, while 3+2 can be very efficient for prismatic parts that simply need access from multiple directions.

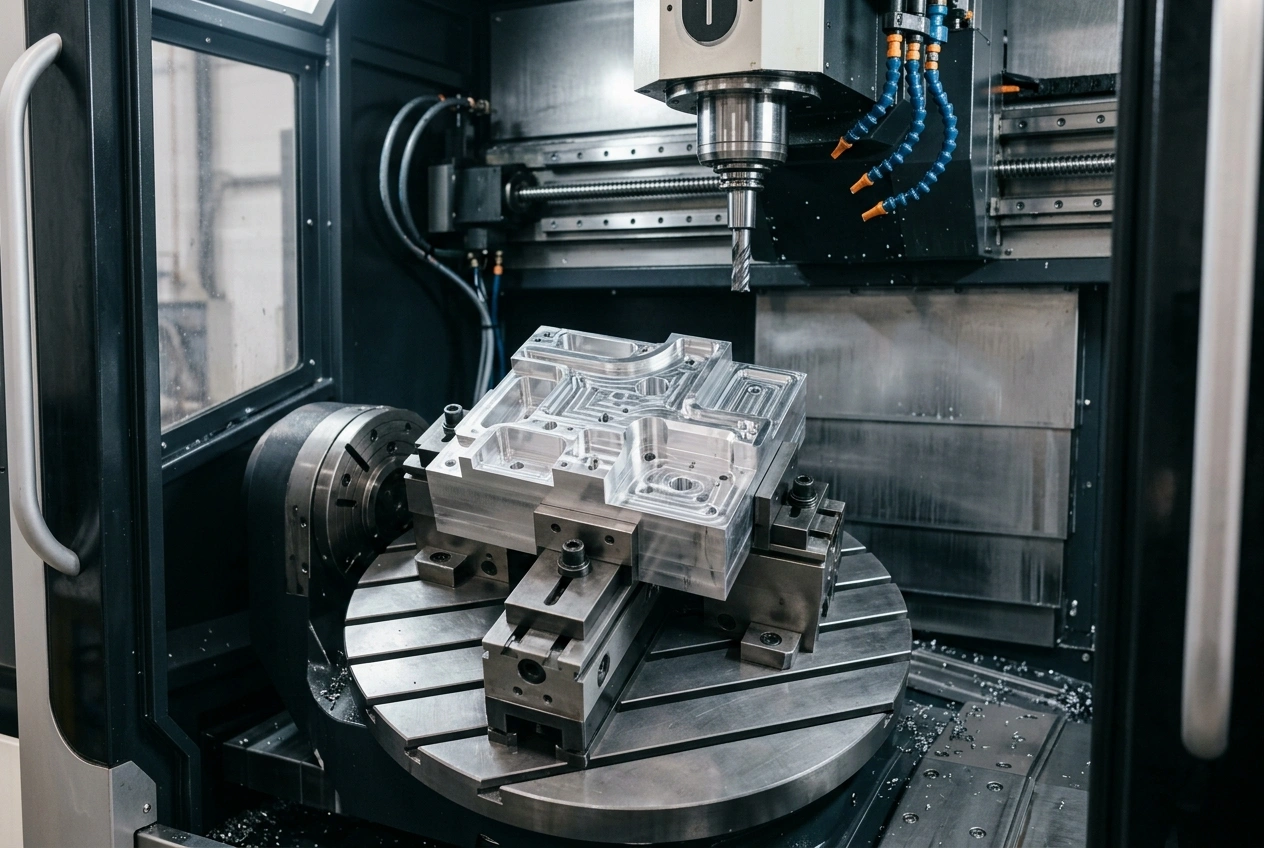

Consider 5-axis when your design has limited tool access in 3-axis, when multiple tilted holes or pockets must stay on relationship without re-fixturing, or when you need a smoother finish on compound curves. If the part is mostly open prismatic work with clear top or side access, 3- or 4-axis milling may be enough. During quoting we compare setup count, cycle risk, and tolerance against simpler strategies so you only pay for multi-axis when it buys real value.

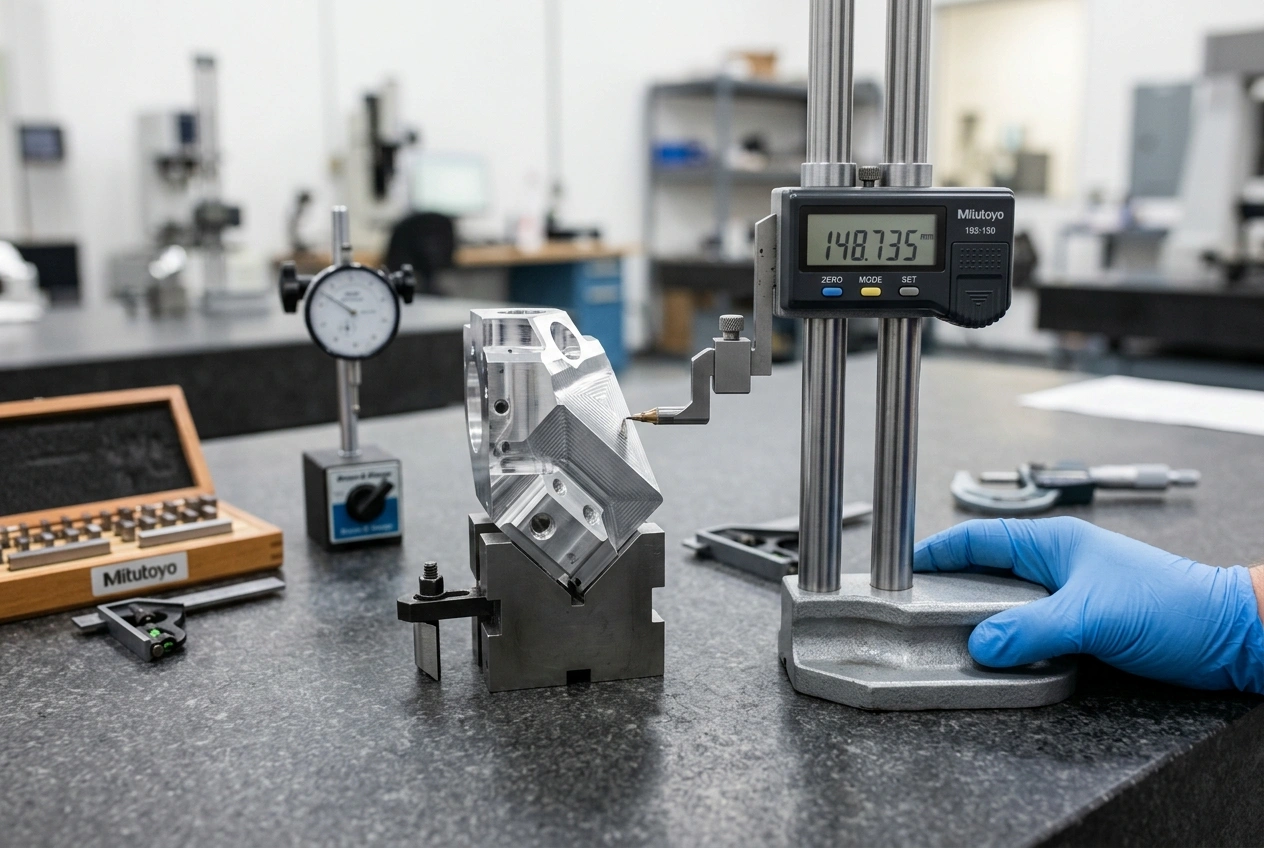

Achievable tolerances depend on workpiece stiffness, tool reach, material, and how aggressively we can finish without chatter—not on the axis count alone. Many features are held to standard or precision bands quoted on your drawing; tighter bands are applied where geometry and metrology allow. Critical relationships should be called out so we can plan probing, CMM sampling, or functional checks in the same order you inspect incoming parts.

We machine aluminum and steel alloys, stainless grades, titanium, brass and copper alloys, and engineering plastics such as PEEK, acetal, and nylon where rigidity and fixturing allow. Alloy choice drives speeds, feeds, coolant, and whether we prefer roughing and finishing passes in different orientations. Tell us about plating, heat treatment, or welding downstream so we leave appropriate stock and deburr strategy.

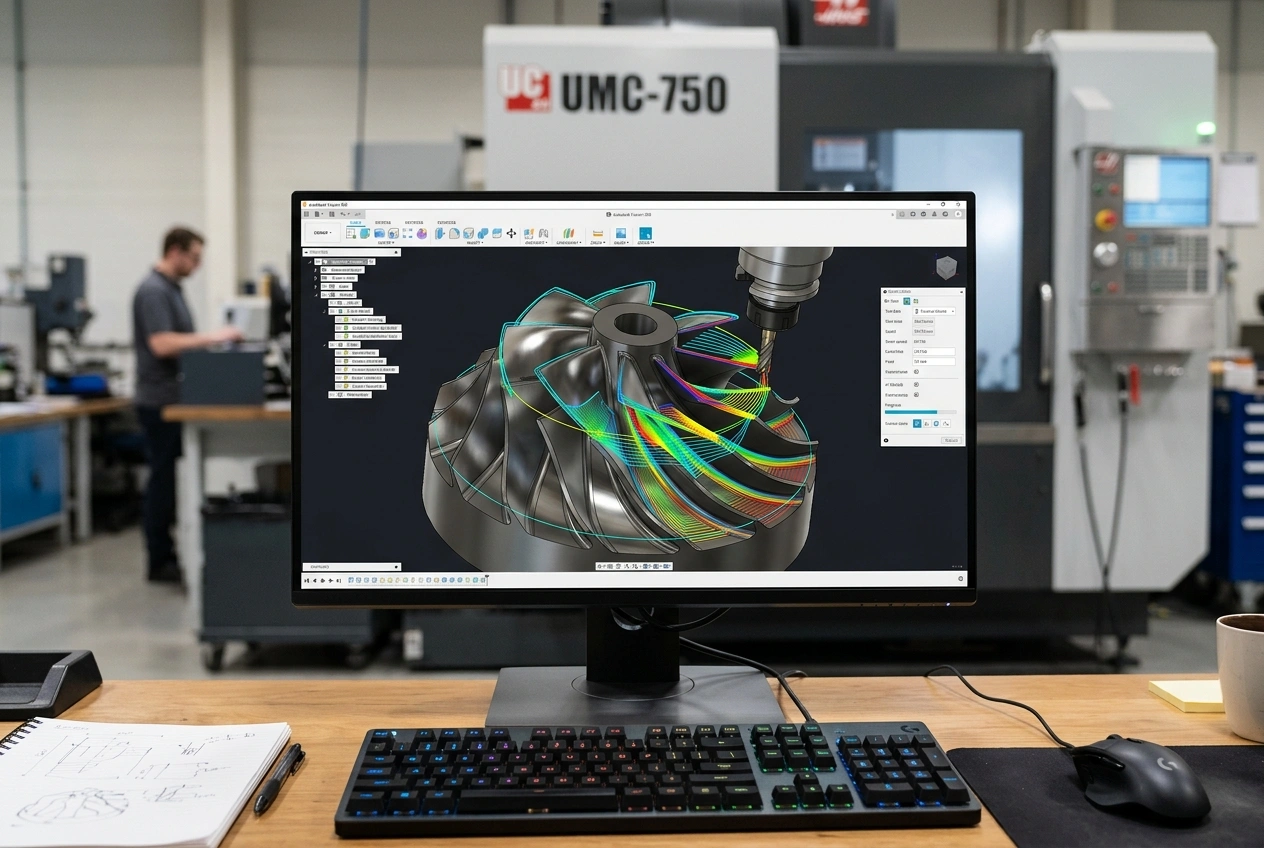

Solid models in STEP, STP, IGES, IGS, or Parasolid (X_T) are preferred. Add a PDF or DWG drawing for datums, GD&T, surface finish, and threads that are not fully modeled. For complex surfaces, highlight which faces are cosmetic versus functional so CAM time targets the right quality level. If you have a preferred machining orientation or a critical setup datum, note it before programming starts.

Multi-axis work can reduce total lead time when it eliminates extra setups and hand-offs, but cycle programming and prove-out are more involved than simple 3-axis plates. Cost follows machine time, tooling wear, inspection scope, and risk—not a single hourly rate. We quote lead time and inspection depth together so procurement sees the full picture before release.
